Create Time-based Escrows Using JavaScript

This example shows how to:

  1. Create escrow payments that become available at a specified time and expire at a specified time.
  2. Finish an escrow payment.
  3. Retrieve information on escrows attached to an account.
  4. Cancel an escrow payment and return the XRP to the sending account.

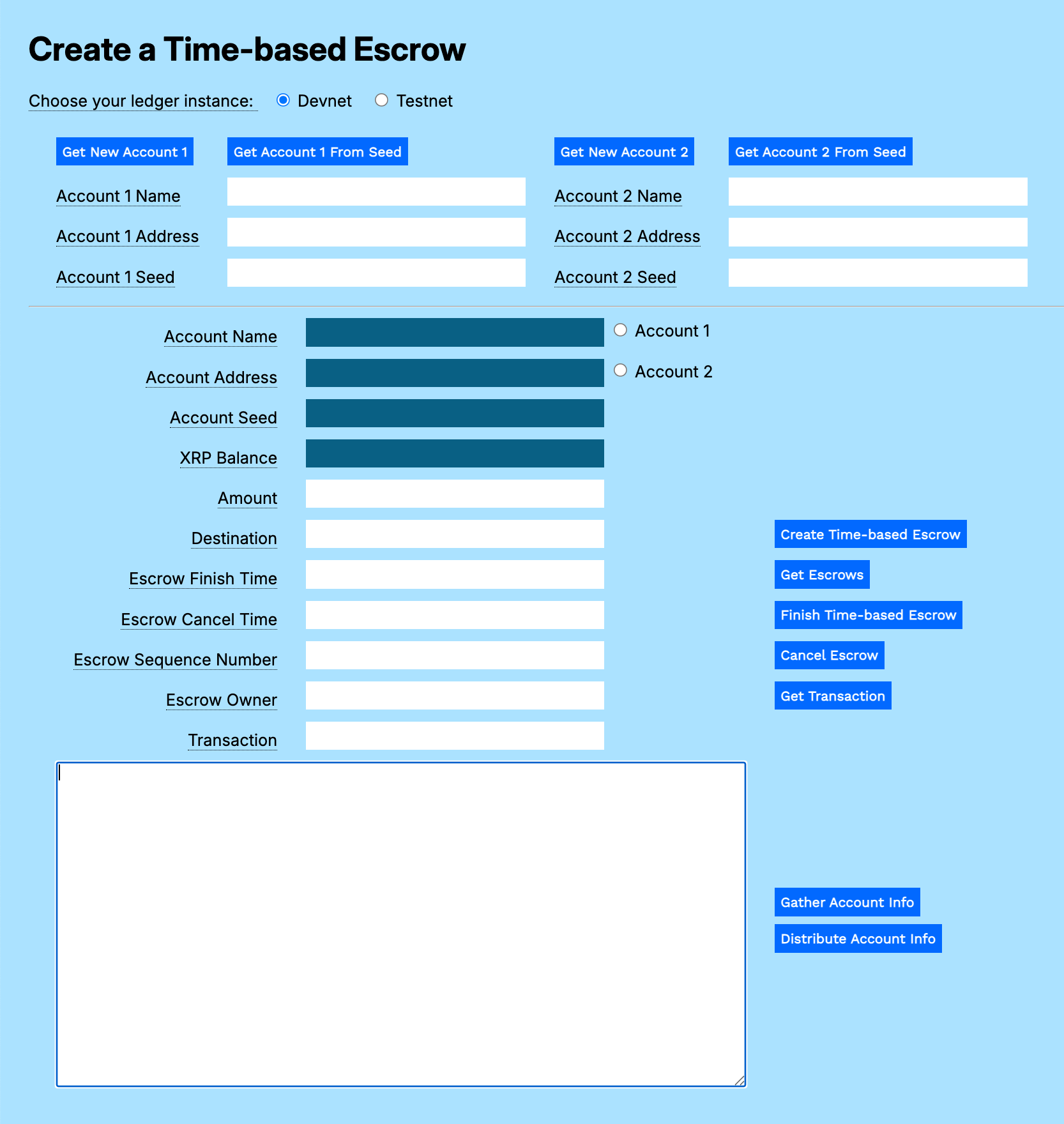

Escrow Tester Form

Prerequisites

Download the Quickstart Samples.

Usage

To get test accounts:

  1. Open 8.escrow.html in a browser
  2. Choose Testnet or Devnet.
  3. Get test accounts.
    1. If you have existing account seeds
      1. Paste account seeds in the Seeds field.
      2. Click Get Accounts from Seeds.
    2. If you do not have account seeds:
      1. Click Get New Standby Account.
      2. Click Get New Operational Account.

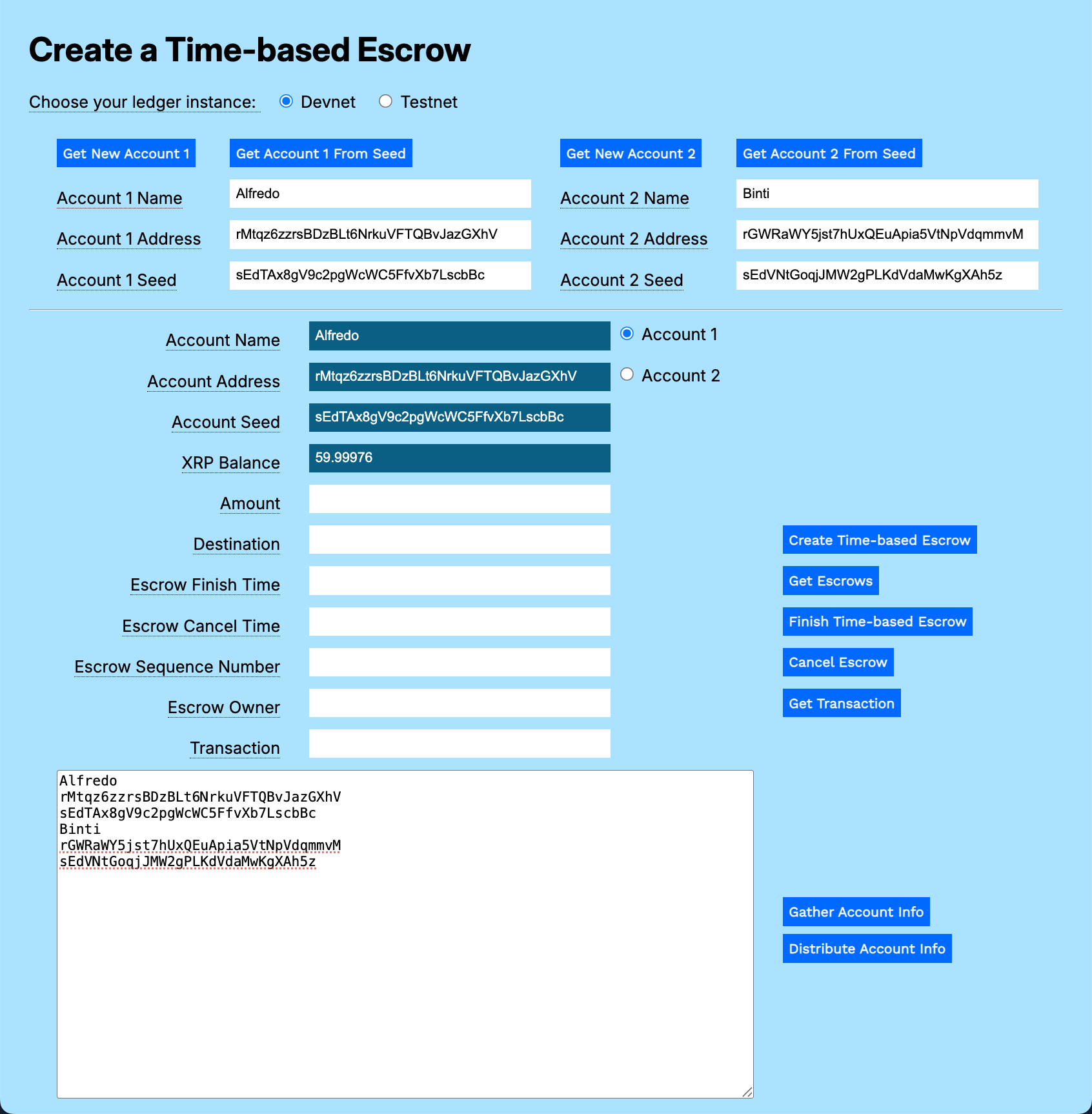

Escrow Tester with Account Information

Create Escrow

You can create a time-based escrow with a minimum time to finish the escrow and a cancel time after which the funds in escrow are no longer available to the recipient. This is a test harness: while a practical scenario might express time in days or weeks, this form lets you set the finish and cancel times in seconds so that you can quickly run through a variety of scenarios. (There are 86,400 seconds in a day, if you want to play with longer term escrows.)

To create a time-based escrow:

  1. Enter an Amount to transfer.
  2. Copy the Operational Account value.
  3. Paste it in the Destination Account field.
  4. Set the Escrow Finish (seconds) value. For example, enter 10.
  5. Set the Escrow Cancel (seconds) value. For example, enter 120.
  6. Click Create Escrow.
  7. Copy the Sequence Number of the escrow called out in the Standby Result field.

The escrow is created on the XRP Ledger instance, reserving 100 XRP plus the transaction cost. When you create an escrow, capture and save the Sequence Number so that you can use it to finish the escrow transaction.

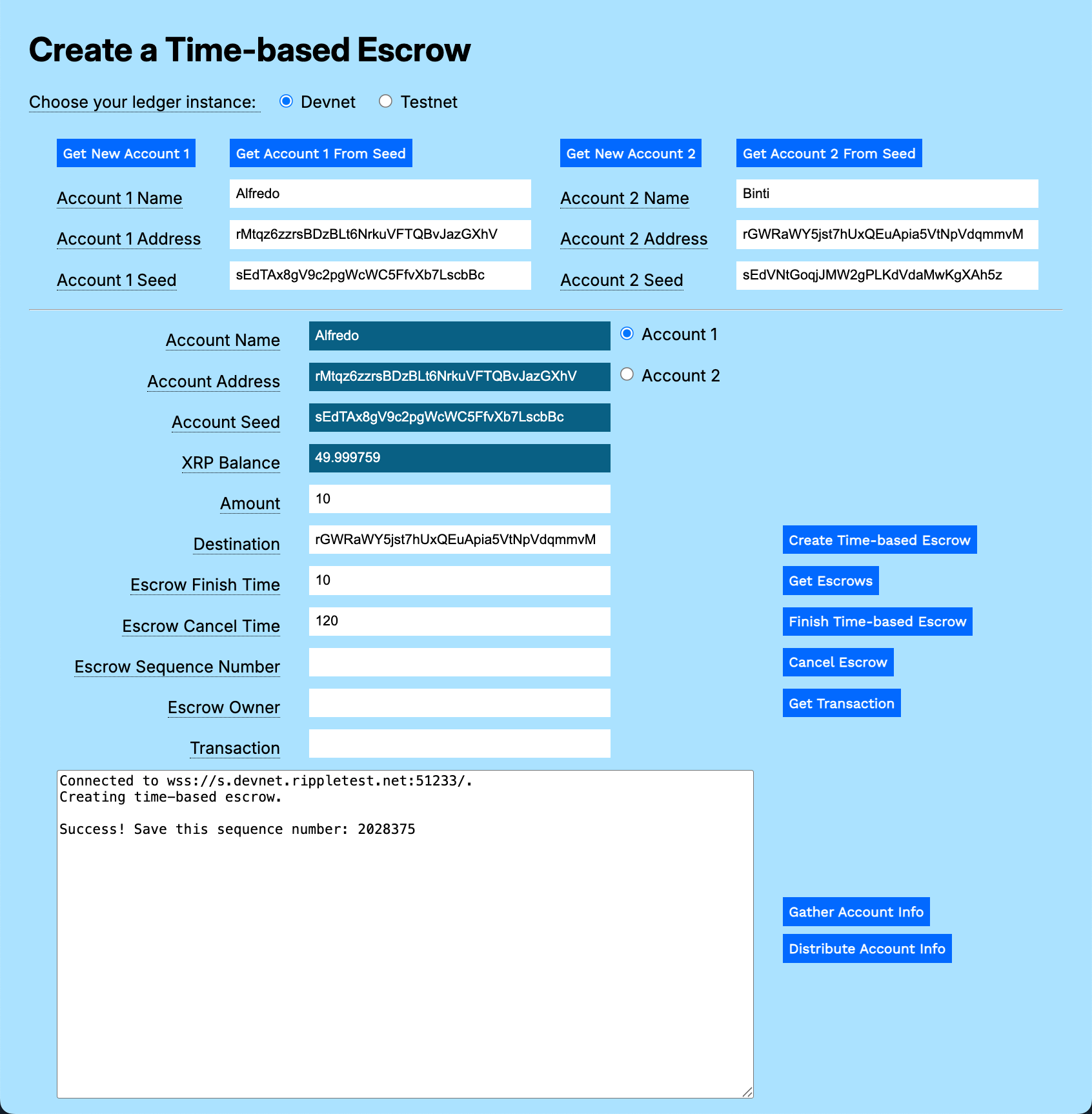

Completed Escrow Transaction

Finish Escrow

The recipient of the XRP held in escrow can finish the transaction any time within the time window after the Escrow Finish date and time but before the Escrow Cancel date and time. Following on the example above, you can use the Sequence Number to finish the transaction once 10 seconds have passed.

To finish a time-based escrow:

  1. Paste the sequence number in the Operational account Escrow Sequence Number field.
  2. Click Finish Escrow.

The transaction completes and balances are updated for both the Standby and Operational accounts.

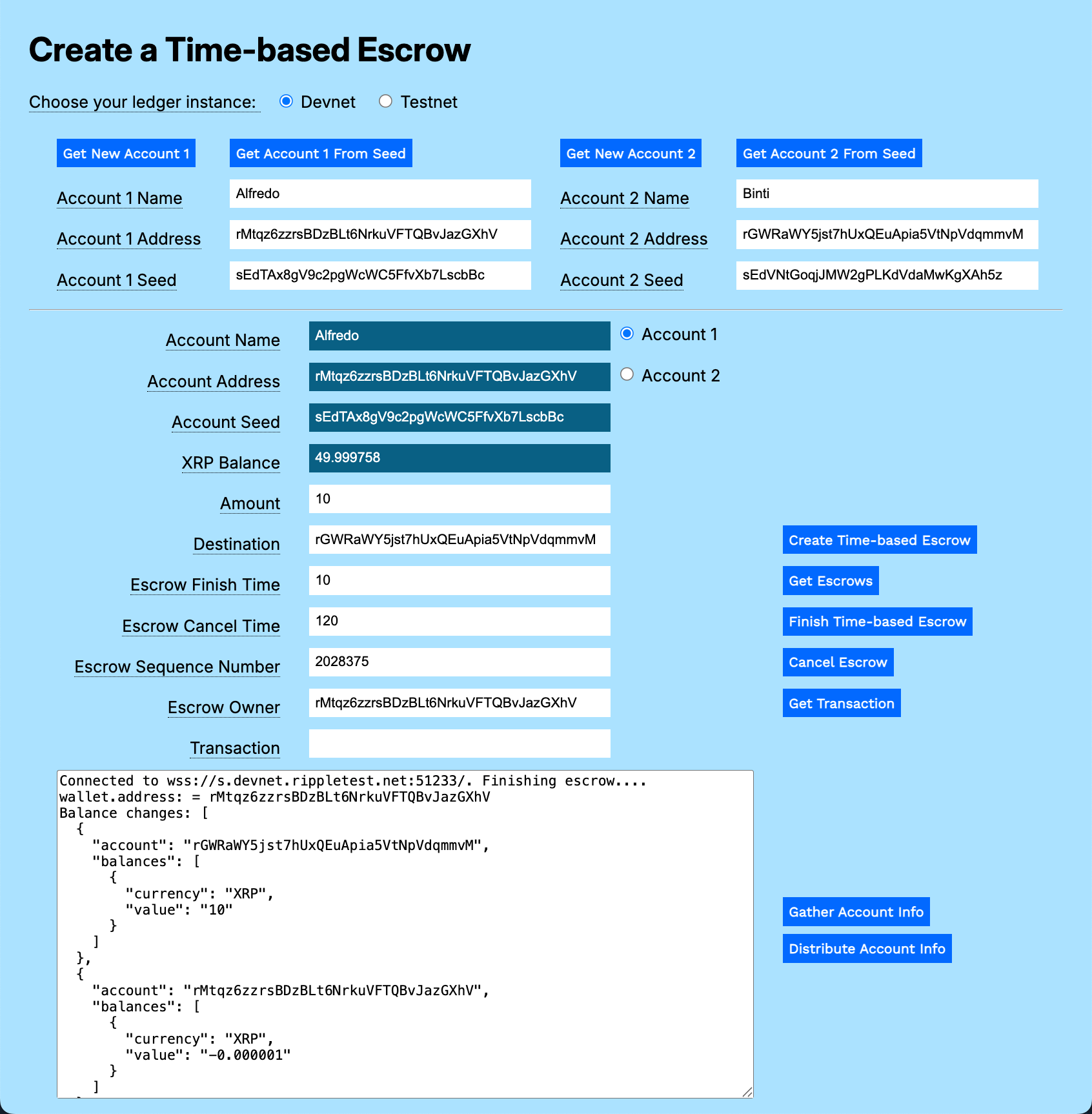

Completed Escrow Transaction

Get Escrows

Click Get Escrows for either the Standby account or the Operational account to see their current list of escrows. If you click the buttons now, there are no escrows at the moment.

For the purposes of this tutorial, follow the steps in Create Escrow, above, to create a new escrow transaction, perhaps setting Escrow Cancel (seconds) field to 600 seconds to give you extra time to explore. Remember to capture the Sequence Number from the transaction results.

Click Get Escrows for both the Standby and the Operational account. The account_info request returns the same account_object for both accounts, demonstrating the link between the accounts created by the escrow transaction.

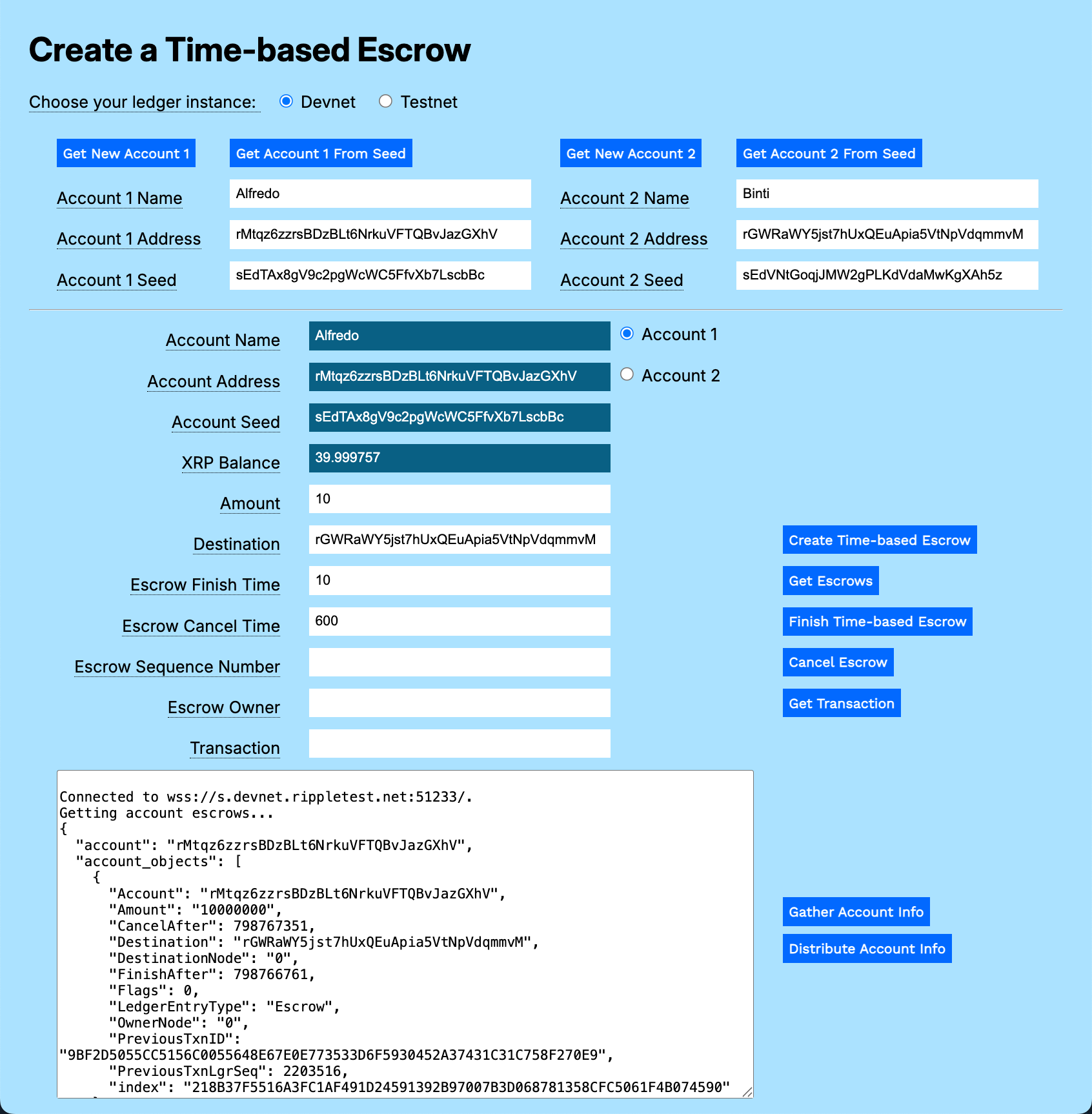

Get Escrows results

Cancel Escrow

When the Escrow Cancel time passes, the escrow is no longer available to the recipient. The initiator of the escrow can reclaim the XRP, less the transaction fees. If you try to cancel the transaction prior to the Escrow Cancel time, you are charged for the transaction, but the actual escrow cannot be cancelled until the time limit is reached.

You can wait the allotted time for the escrow you created in the previous step, then use it to try out the Cancel Escrow button

To cancel an expired escrow:

  1. Enter the sequence number in the Standby Escrow Sequence Number field.
  2. Click Cancel Escrow.

The funds are returned to the Standby account, less the initial transaction fee.

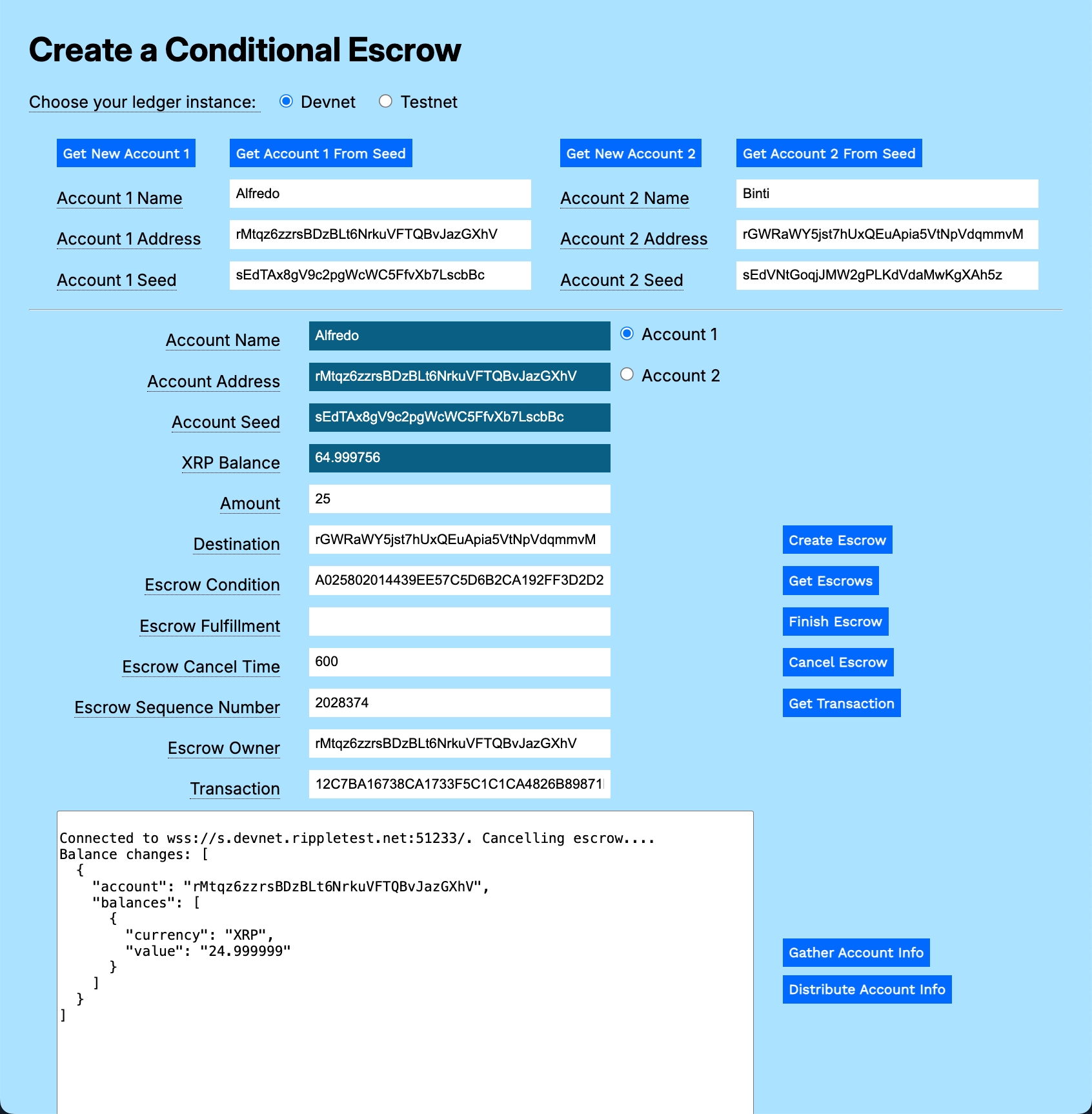

Cancel Escrow results

Oh No! I Forgot to Save the Sequence Number!

If you forget to save the sequence number, you can find it in the escrow transaction record.

  1. Create a new escrow as described in Create Escrow, above.
  2. Click Get Escrows to get the escrow information.

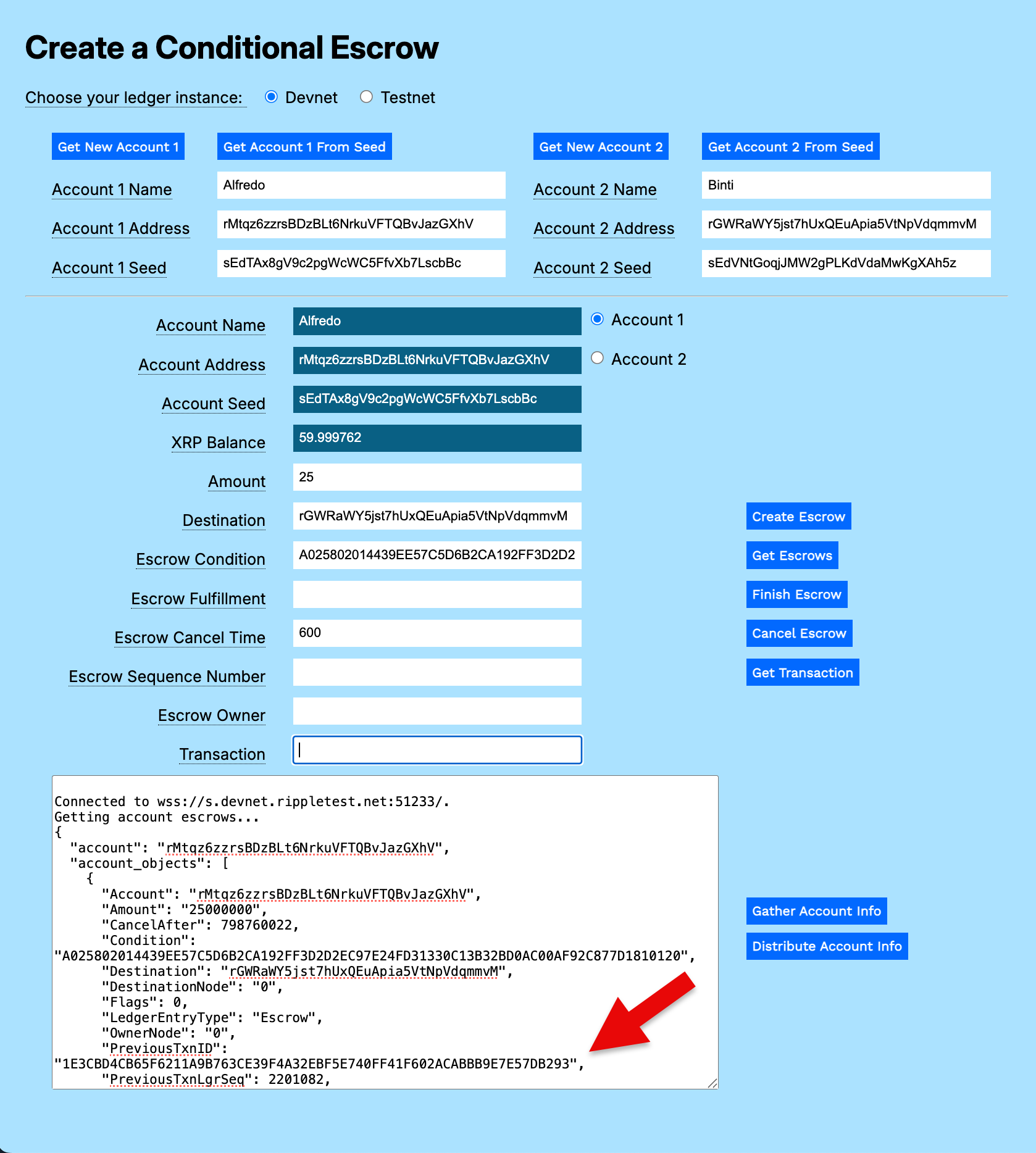

  3. Copy the PreviousTxnID value from the results. Transaction ID in Get Escrows results
  4. Paste the PreviousTxnID in the Transaction to Look Up field. Transaction to Look Up field
  5. Click Get Transaction.

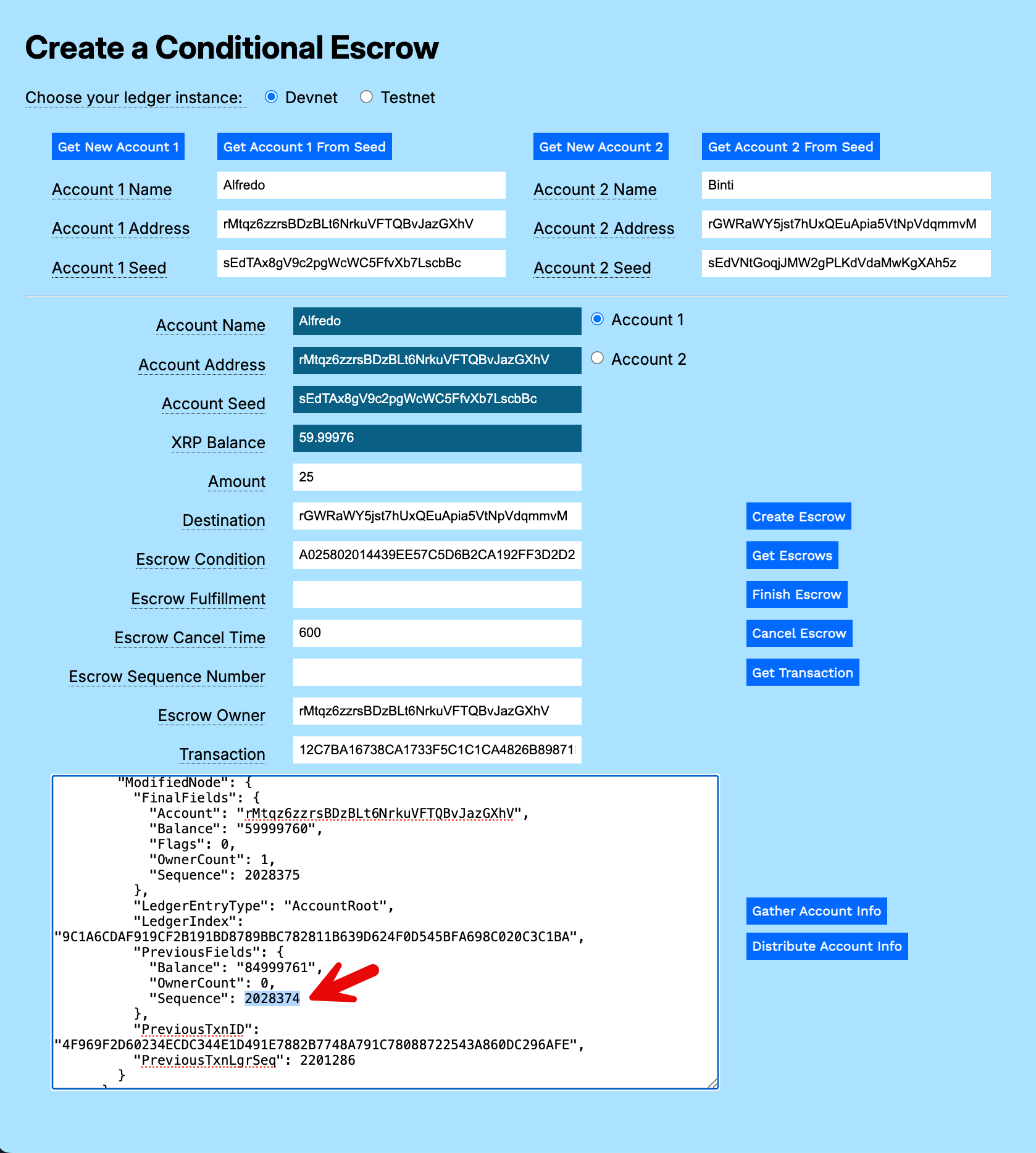

  6. Locate the Sequence value in the results. Sequence number in results

Code Walkthrough

You can download the Quickstart Samplesin the source repository for this website.

ripple8-escrow.js

This example can be used with any XRP Ledger network, Testnet, or Devnet. You can update the code to choose different or additional XRP Ledger networks.

Add Seconds to Date

This function accomplishes two things. It creates a new date object and adds the number of seconds taken from a form field. Then, it adjusts the date from the JavaScript format to the XRP Ledger format.

You provide the numOfSeconds argument, the second parameter is a new Date object.

function addSeconds(numOfSeconds, date = new Date()) {

Set the seconds value to the date seconds plus the number of seconds you provide.

  date.setSeconds(date.getSeconds() + numOfSeconds);

JavaScript dates are in milliseconds. Divide the date by 1000 to base it on seconds.

  date = Math.floor(date / 1000)

Subtract the number of seconds in the Ripple epoch to convert the value to an XRP Ledger compatible date value.

  date = date - 946684800

Return the result.

  return date;
}

Create Time-based Escrow

async function createTimeEscrow() {

Instantiate two new date objects, then set the dates to the current date plus the set number of seconds for the finish and cancel dates.

  let escrow_finish_date = new Date()
  let escrow_cancel_date = new Date()
  escrow_finish_date = addSeconds(parseInt(standbyEscrowFinishDateField.value))
  escrow_cancel_date = addSeconds(parseInt(standbyEscrowCancelDateField.value))

Connect to the ledger.

  results  = "Connecting to the selected ledger.\n"
  standbyResultField.value = results
  let net = getNet()
  results = "Connecting to " + net + "....\n"
  const client = new xrpl.Client(net)
  await client.connect()
  results  += "Connected. Creating time-based escrow.\n"
  standbyResultField.value = results

Get the wallet information based on the account seed values.

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
  const sendAmount = standbyAmountField.value
  results += "\nstandby_wallet.address: = " + standby_wallet.address
  standbyResultField.value = results

Define the EscrowCreate transaction, automatically filling values in common fields.

  const escrowTx = await client.autofill({
    "TransactionType": "EscrowCreate",
    "Account": standby_wallet.address,
    "Amount": xrpl.xrpToDrops(sendAmount),
    "Destination": standbyDestinationField.value,
    "FinishAfter": escrow_finish_date,
    "CancelAfter": escrow_cancel_date
  })

Sign the escrow transaction definition.

  const signed = standby_wallet.sign(escrowTx)

Submit the transaction.

  const tx = await client.submitAndWait(signed.tx_blob)

Report the results.

  results += "\nSequence Number (Save!): " + JSON.stringify(tx.result.Sequence)
  results += "\n\nBalance changes: " +
  JSON.stringify(xrpl.getBalanceChanges(tx.result.meta), null, 2)
  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
  standbyResultField.value = results

Disconnect from the XRP Ledger.

  client.disconnect()
} // End of createTimeEscrow()

Finish Time-based Escrow

async function finishEscrow() {

Connect to the XRP Ledger and get the account wallets.

  results  = "Connecting to the selected ledger.\n"
  operationalResultField.value = results
  let net = getNet()
  results = 'Connecting to ' + getNet() + '....'
  const client = new xrpl.Client(net)
  await client.connect()

  results  += "\nConnected. Finishing escrow.\n"
  operationalResultField.value = results

  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)
  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const sendAmount = operationalAmountField.value

  results += "\noperational_wallet.address: = " + operational_wallet.address
  operationalResultField.value = results

Define the transaction. The Owner is the account that created the escrow. The OfferSequence is the sequence number of the escrow transaction. Automatically fill in the common fields for the transaction.

  const prepared = await client.autofill({
    "TransactionType": "EscrowFinish",
    "Account": operationalAccountField.value,
    "Owner": standbyAccountField.value,
    "OfferSequence": parseInt(operationalEscrowSequenceField.value)
  })

Sign the transaction definition.

  const signed = operational_wallet.sign(prepared)

Submit the signed transaction to the XRP ledger.


  const tx = await client.submitAndWait(signed.tx_blob)

Report the results.

  results  += "\nBalance changes: " +
    JSON.stringify(xrpl.getBalanceChanges(tx.result.meta), null, 2)
  operationalResultField.value = results

  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))

Disconnect from the XRP Ledger.

  client.disconnect()
} // End of finishEscrow()

Get Standby Escrows

Get the escrows associated with the Standby account.

async function getStandbyEscrows() {

Connect to the network. The information you are looking for is public information, so there is no need to instantiate your wallet.

  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  standbyResultField.value = results

  await client.connect()
  results += '\nConnected.'
  standbyResultField.value = results

  results= "\nGetting standby account escrows...\n"

Create the account_objects request. Specify that you want objects of the type escrow.

  const escrow_objects = await client.request({
    "id": 5,
    "command": "account_objects",
    "account": standbyAccountField.value,
    "ledger_index": "validated",
    "type": "escrow"
  })

Report the results.

  results += JSON.stringify(escrow_objects.result, null, 2)
  standbyResultField.value = results

Disconnect from the XRP Ledger

  client.disconnect()
} // End of getStandbyEscrows()

Get Operational Escrows

This function is the same as getStandbyEscrows(), but for the Operational account.

async function getOperationalEscrows() {

Connect to the network. The information you are looking for is public information, so there is no need to instantiate your wallet.

  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  operationalResultField.value = results

  await client.connect()
  results += '\nConnected.'
  operationalResultField.value = results

  results= "\nGetting operational account escrows...\n"

Create the account_objects request. Specify that you want objects of the type escrow.

  const escrow_objects = await client.request({
    "id": 5,
    "command": "account_objects",
    "account": operationalAccountField.value,
    "ledger_index": "validated",
    "type": "escrow"
  })

Report the results.

  results += JSON.stringify(escrow_objects.result, null, 2)
  operationalResultField.value = results

Disconnect from the XRP Ledger instance.

  client.disconnect()
} // End of getOperationalEscrows()

Get Transaction Info

async function getTransaction() {

Connect to the XRP Ledger.

  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  operationalResultField.value = results

  await client.connect()
  results += '\nConnected.'
  operationalResultField.value = results

  results= "\nGetting transaction information...\n"

Prepare and send the transaction information request. The only required parameter is the transaction ID.

  const tx_info = await client.request({
    "id": 1,
    "command": "tx",
    "transaction": operationalTransactionField.value,
  })

Report the results.

  results += JSON.stringify(tx_info.result, null, 2)
  operationalResultField.value = results

Disconnect from the XRP Ledger instance.

  client.disconnect()
} // End of getTransaction()

Cancel Escrow

Cancel an escrow after it passes the expiration date.

async function cancelEscrow() {

Connect to the XRP Ledger instance.

  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  standbyResultField.value = results

  await client.connect()
  results += '\nConnected.'
  standbyResultField.value = results

Get the account wallets.

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)

Prepare the EscrowCancel transaction.

  const prepared = await client.autofill({
    "TransactionType": "EscrowCancel",
    "Account": standby_wallet.address,
    "Owner": standbyAccountField.value,
    "OfferSequence": parseInt(standbyEscrowSequenceNumberField.value)
  })

Sign the transaction.

  const signed = standby_wallet.sign(prepared)

Submit the transaction and wait for the response.

  const tx = await client.submitAndWait(signed.tx_blob)

Report the results.

  results  += "\nBalance changes: " +
    JSON.stringify(xrpl.getBalanceChanges(tx.result.meta), null, 2)
  standbyResultField.value = results
  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))

Disconnect from the XRP Ledger instance.

  client.disconnect()
}

8.escrow.html

<html>
  <head>
    <title>Time-based Escrow Test Harness</title>
    <link href='https://fonts.googleapis.com/css?family=Work Sans' rel='stylesheet'>
    <style>
       body{font-family: "Work Sans", sans-serif;padding: 20px;background: #fafafa;}
       h1{font-weight: bold;}
       input, button {padding: 6px;margin-bottom: 8px;}
       button{font-weight: bold;font-family: "Work Sans", sans-serif;}
       td{vertical-align: middle;}
    </style>
    <script src='https://unpkg.com/[email protected]'></script>
    <script src='ripplex1-send-xrp.js'></script>
    <script src='ripplex2-send-currency.js'></script>
    <script src='ripplex8-escrow.js'></script>
  </head>

<!-- ************************************************************** -->
<!-- ********************** The Form ****************************** -->
<!-- ************************************************************** -->

  <body>
    <h1>Time-based Escrow Test Harness</h1>
    <form id="theForm">
      Choose your ledger instance:
      &nbsp;&nbsp;
      <input type="radio" id="tn" name="server"
        value="wss://s.altnet.rippletest.net:51233" checked>
      <label for="tn">Testnet</label>
      &nbsp;&nbsp;
      <input type="radio" id="dn" name="server"
        value="wss://s.devnet.rippletest.net:51233">
      <label for="dn">Devnet</label>
      <br/><br/>
      <button type="button" onClick="getAccountsFromSeeds()">Get Accounts From Seeds</button>
      <br/>
      <textarea id="seeds" cols="40" rows= "2"></textarea>
      <br/><br/>
      <table>
        <tr valign="top">
          <td>
            <table>
              <tr valign="top">
                <td>
                <td>
                  <button type="button" onClick="getAccount('standby')">Get New Standby Account</button>
                  <table>
                    <tr valign="top">
                      <td align="right">
                        Standby Account
                      </td>
                      <td>
                        <input type="text" id="standbyAccountField" size="40"></input>
                        <br>
                      </td>
                    </tr>

                    <tr>
                      <td align="right">
                        XRP Balance
                      </td>
                      <td>
                        <input type="text" id="standbyBalanceField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Amount
                      </td>
                      <td>
                        <input type="text" id="standbyAmountField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Destination Account
                      </td>
                      <td>
                        <input type="text" id="standbyDestinationField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Escrow Finish (seconds)
                      </td>
                      <td>
                        <input type="text" id="standbyEscrowFinishDateField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Escrow Cancel (seconds)
                      </td>
                      <td>
                        <input type="text" id="standbyEscrowCancelDateField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Escrow Sequence Number
                      </td>
                      <td>
                        <input type="text" id="standbyEscrowSequenceNumberField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr valign="top">
                      <td><button type="button" onClick="configureAccount('standby',document.querySelector('#standbyDefault').checked)">Configure Account</button></td>
                      <td>
                        <input type="checkbox" id="standbyDefault" checked="true"/>
                        <label for="standbyDefault">Allow Rippling</label>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Public Key
                      </td>
                      <td>
                        <input type="text" id="standbyPubKeyField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Private Key
                      </td>
                      <td>
                        <input type="text" id="standbyPrivKeyField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Seed
                      </td>
                      <td>
                        <input type="text" id="standbySeedField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                  </table>
                  <p align="left">
                    <textarea id="standbyResultField" cols="80" rows="20" ></textarea>
                  </p>
                </td>
                </td>
                <td>
                  <table>
                    <tr valign="top">
                      <td align="center" valign="top">
                        <button type="button" onClick="sendXRP()">Send XRP &#62;</button>
                        <br/><br/>
                        <button type="button" onClick="getBalances()">Get Balances</button>
                        <br/>
                        <button type="button" onClick="createTimeEscrow()">Create Time-based Escrow</button>
                        <br/>
                        <button type="button" onClick="getStandbyEscrows()">Get Escrows</button>
                        <br/>
                        <button type="button" onClick="cancelEscrow()">Cancel Escrow</button>
                      </td>
                      </td>
                    </tr>
                    </td>
                    </tr>
                  </table>
                </td>
              </tr>
            </table>
          </td>
          <td>
            <table>
              <tr>
                <td>
                <td>
                  <table>
                    <tr valign="top">
                      <td align="center" valign="top">
                        <button type="button" onClick="oPsendXRP()">&#60; Send XRP</button>
                        <br/><br/>
                        <button type="button" onClick="getBalances()">Get Balances</button>
                        <br/>
                        <button type="button" onClick="finishEscrow()">Finish Time-based Escrow</button>
                        <br/>
                        <button type="button" onClick="getOperationalEscrows()">Get Escrows</button>
                        <br/>
                        <button type="button" onClick="getTransaction()">Get Transaction</button>
                      </td>
                      <td valign="top" align="right">
                        <button type="button" onClick="getAccount('operational')">Get New Operational Account</button>
                        <table>
                          <tr valign="top">
                            <td align="right">
                              Operational Account
                            </td>
                            <td>
                              <input type="text" id="operationalAccountField" size="40"></input>
                              <br>
                            </td>
                          </tr>

                          <tr>
                            <td align="right">
                              XRP Balance
                            </td>
                            <td>
                              <input type="text" id="operationalBalanceField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Amount
                            </td>
                            <td>
                              <input type="text" id="operationalAmountField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Destination
                            </td>
                            <td>
                              <input type="text" id="operationalDestinationField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                          <tr>
                            <td align="right">
                              Escrow Sequence Number
                            </td>
                            <td>
                              <input type="text" id="operationalEscrowSequenceField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>                            <td align="right">
                              Transaction to Look Up
                            </td>
                            <td>
                              <input type="text" id="operationalTransactionField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                          <td>
                            </td>
                            <td align="right">
                            <input type="checkbox" id="operationalDefault" checked="true"/>
                              <label for="operationalDefault">Allow Rippling</label>
                              <button type="button" onClick="configureAccount('operational',document.querySelector('#operationalDefault').checked)">Configure Account</button>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Public Key
                            </td>
                            <td>
                              <input type="text" id="operationalPubKeyField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Private Key
                            </td>
                            <td>
                              <input type="text" id="operationalPrivKeyField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Seed
                            </td>
                            <td>
                              <input type="text" id="operationalSeedField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                        </table>
                        <p align="right">
                          <textarea id="operationalResultField" cols="80" rows="20" ></textarea>
                        </p>
                      </td>
                      </td>
                    </tr>
                    </td>
                    </tr>
                  </table>
                </td>
              </tr>
            </table>
          </td>
        </tr>
      </table>
    </form>
  </body>
</html>
Previous page
Next page
