Send and Cash Checks

This example shows how to:

  1. Send a check to transfer XRP or issued currency to another account.
  2. Get a list of checks you have sent or received.
  3. Cash a check received from another account.
  4. Cancel a check you have sent.

Checks offer another option for transferring funds between accounts. Checks have two particular advantages.

  1. You can use a check to send tokens to someone who has not already created a trust line. The trust line is created automatically when the receiver chooses to accept the funds.
  2. The receiver can choose to accept less than the full amount of the check. This allows you to authorize a maximum amount when the actual cost is not finalized.

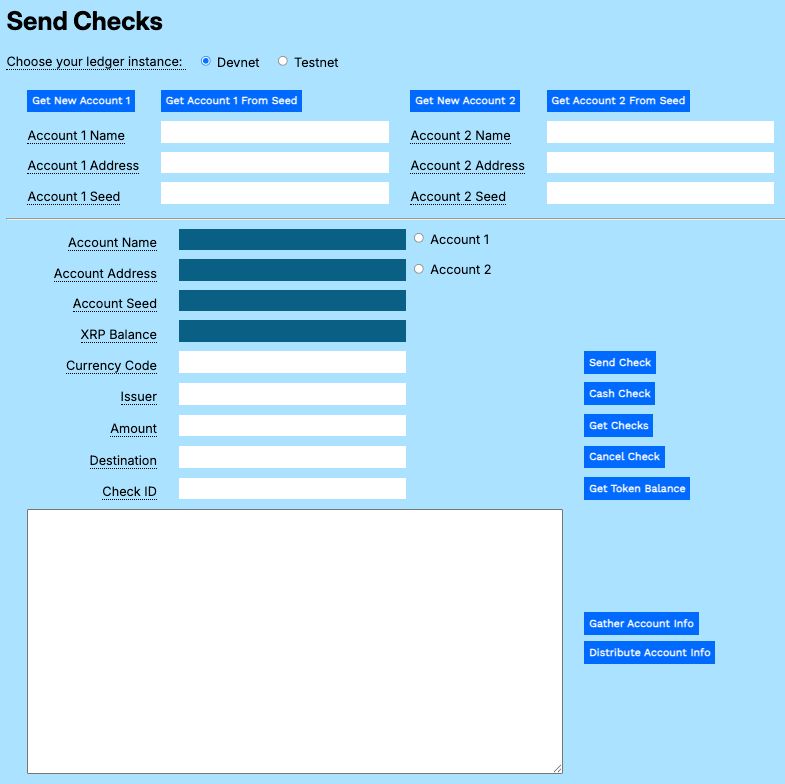

Empty Check Form

Prerequisites

Clone or download the Modular Tutorial Samples.

Note

Without the Modular Tutorial Samples, you will not be able to try the examples that follow.

Usage

To get test accounts:

  1. Open and launch 10check.html.
  2. Click Get Standby Account.
  3. Click Get Operational Account.

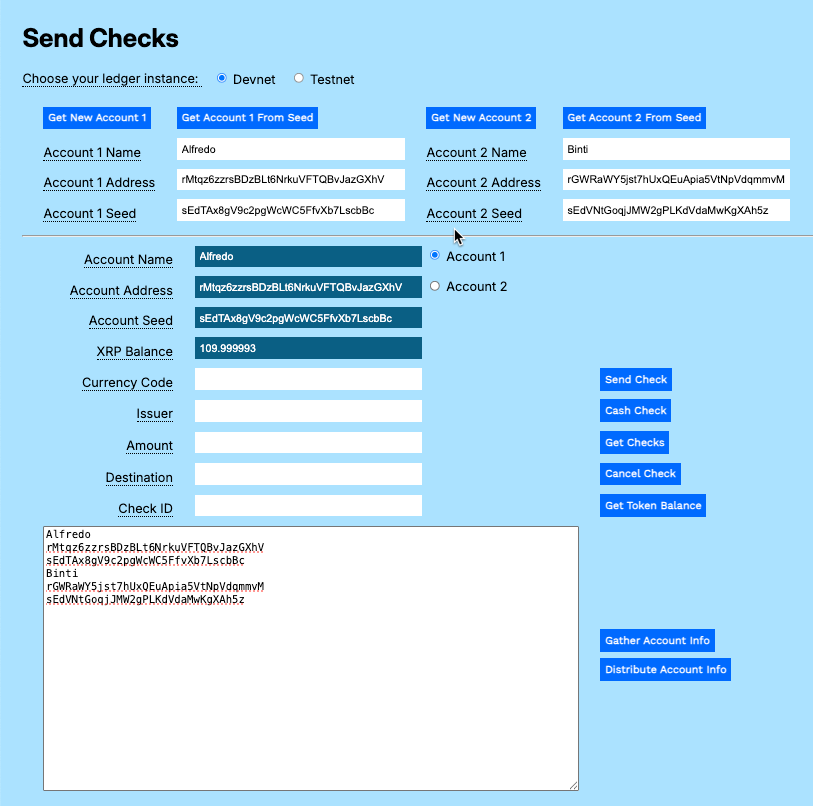

Form with New Accounts

You can transfer XRP between your new accounts. Each account has its own fields and buttons.

Send a Check for XRP

To send a check for XRP from the Standby account to the Operational account:

  1. On the Standby (left) side of the form, enter the Amount of XRP to send, in drops.
  2. Copy and paste the Operational Account field to the Standby Destination field.
  3. Set the Currency to XRP.
  4. Click Send Check.

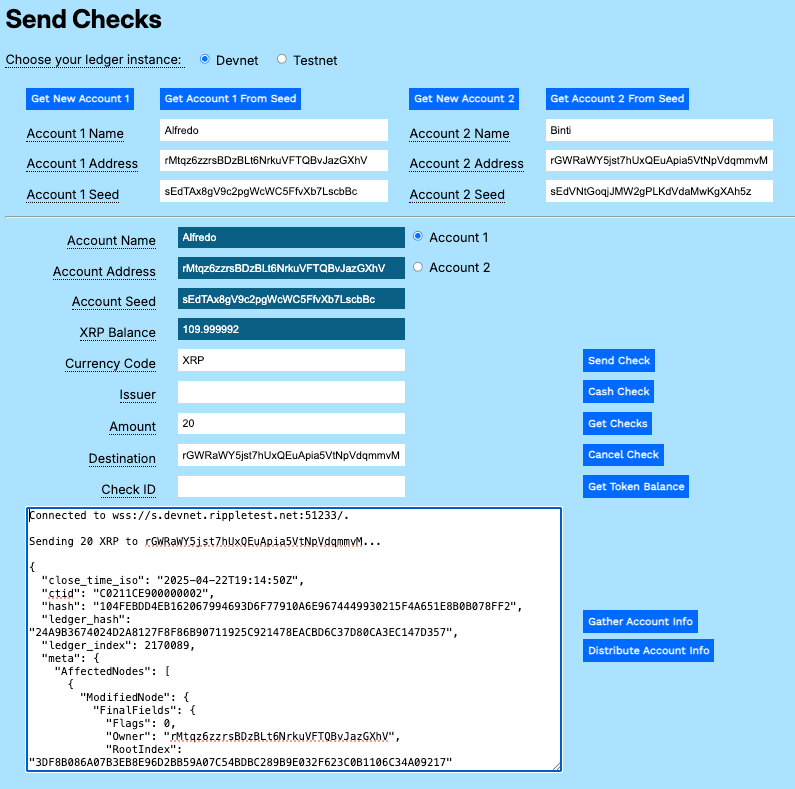

Send Check Settings

Send a Check for an Issued Currency

To send a check for an issued currency token from the Standby account to the Operational account:

  1. On the Standby side of the form, enter the Amount of currency to send.
  2. Copy and paste the Operational Account field to the Standby Destination field.
  3. Copy the Standby Account field and paste the value in the Issuer field.
  4. Enter the Currency code for your token.
  5. Click Send Check.

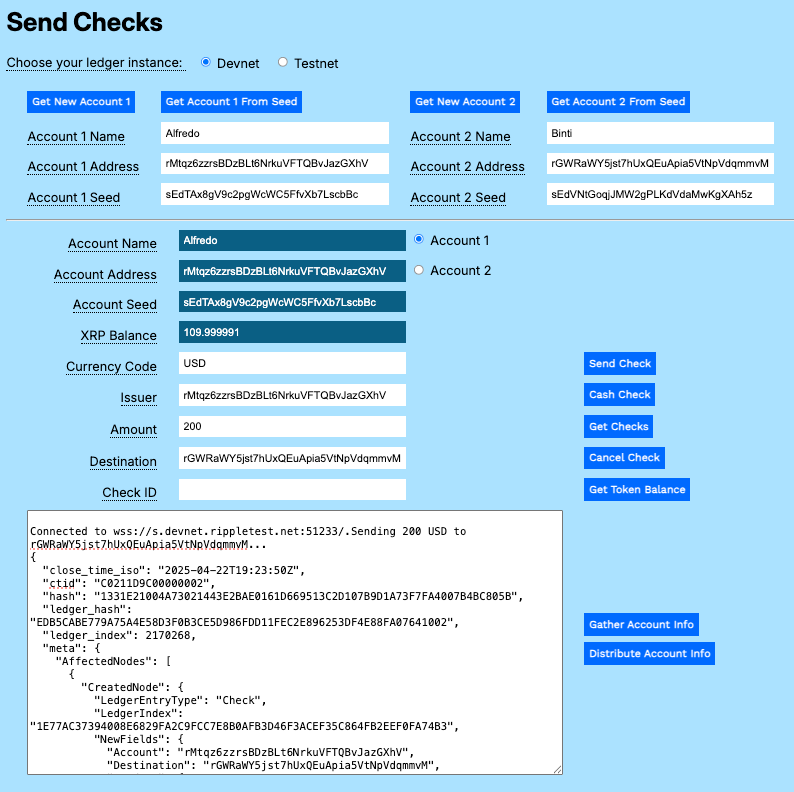

Send Token Check Settings

Get Checks

Click Get Checks to get a list of the current checks you have sent or received. To uniquely identify a check (for example, when cashing a check), use the check's ledger entry ID, in the index field.

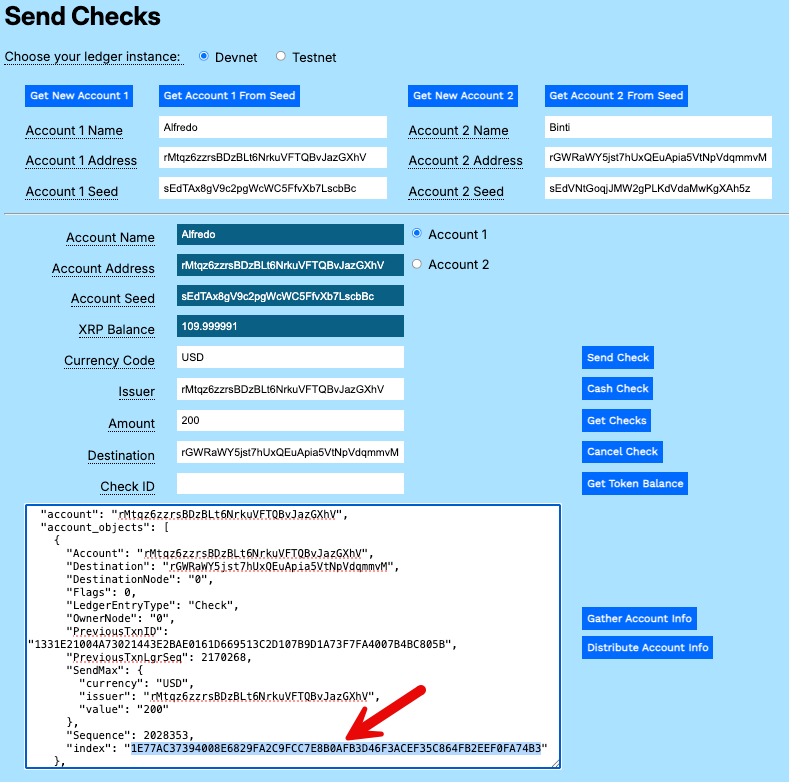

Get Checks with index highlighted

Cash Check

To cash a check you have received:

  1. Enter the Check ID (index value).
  2. Enter the Amount you want to collect, up to the full amount of the check.
  3. Enter the currency code. a. If you cashing a check for XRP, enter XRP in the Currency field. b. If you are cashing a check for an issued currency token:
    1. Enter the Issuer of the token.
    2. Enter the Currency code for the token.
  4. Click Cash Check.

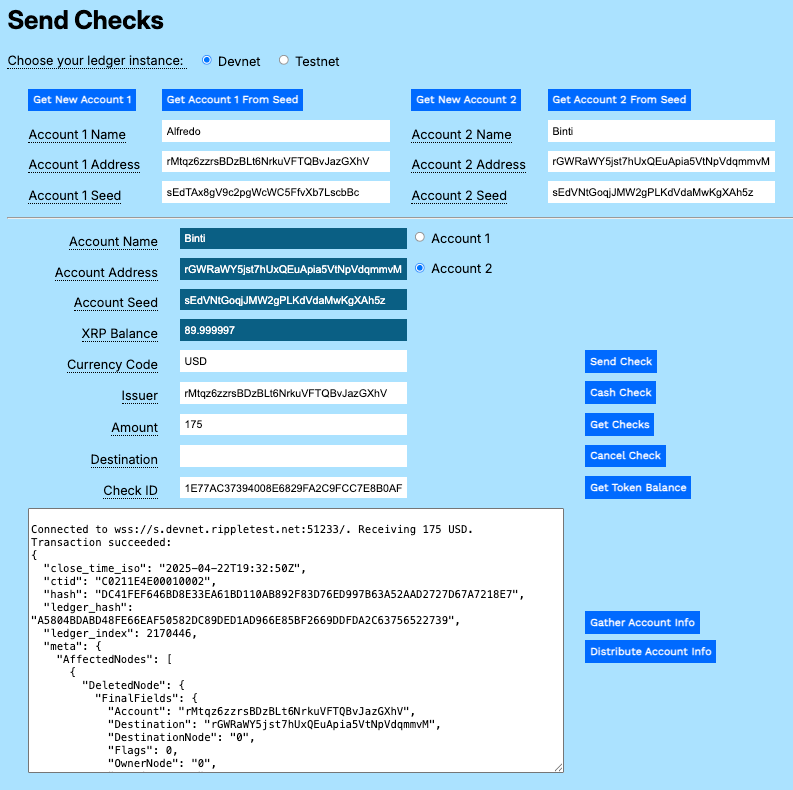

Cashed check results

Get Balances

Click Get Balances to get a list of obligations and assets for each account.

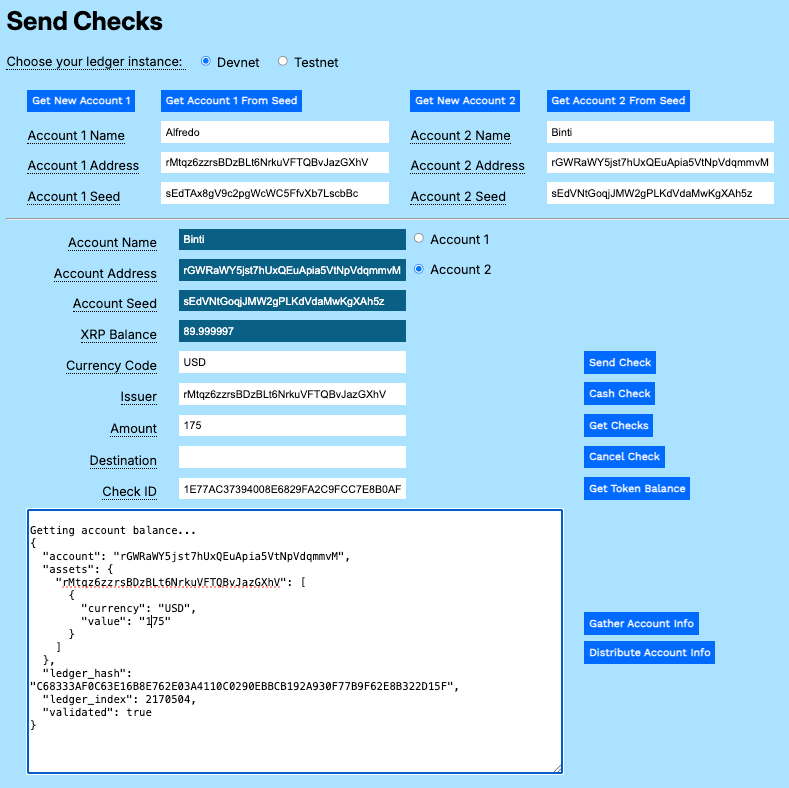

Account Balances

Cancel Check

To cancel a check you have previously sent to another account.

  1. Enter the Check ID (index value).
  2. Click Cancel Check.

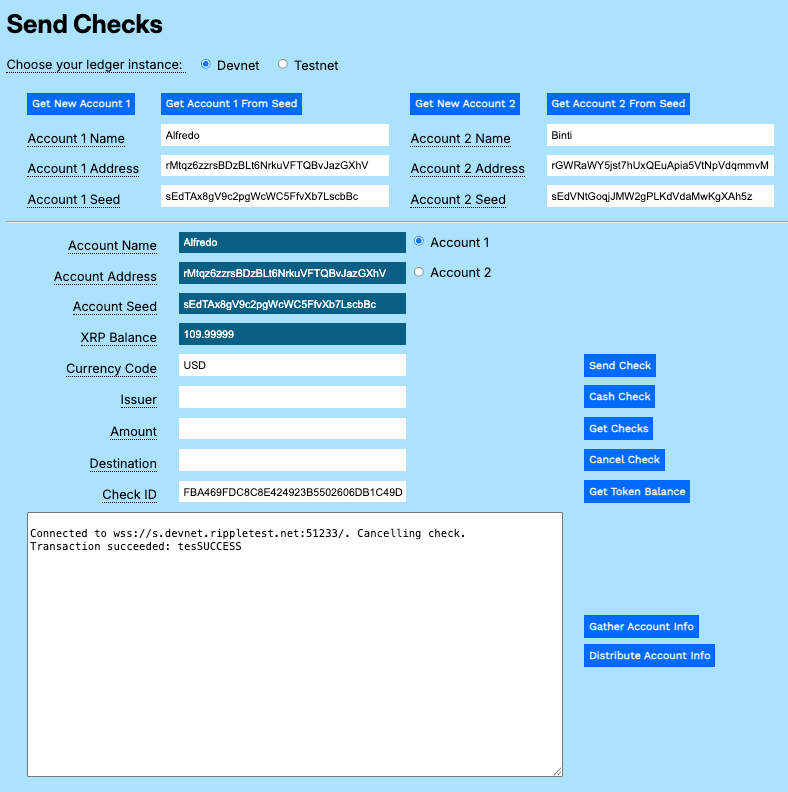

Canceled check results

Code Walkthrough

You can download the Modular Tutorial Samples in the source repository for this website.

ripplex10-check.js

sendCheck()

Connect to the XRP ledger.

async function sendCheck() {
  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  standbyResultField.value = results
  await client.connect()
  results += '\nConnected.'
  standbyResultField.value = results

Instantiate the account wallets.

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)

Create the check_amount variable, based on the standby amount field.

  var check_amount = standbyAmountField.value

If the currency is anything but XRP, it's an issued currency. Update the check_amount variable to include the currency and issuer fields.

  if (standbyCurrencyField.value !=  "XRP") {
  	check_amount = {
      "currency": standbyCurrencyField.value,
      "value": standbyAmountField.value,
      "issuer": standby_wallet.address
  	}
  }

Define the CheckCreate transaction.

  const send_check_tx = {
    "TransactionType": "CheckCreate",
    "Account": standby_wallet.address,
    "SendMax": check_amount,
    "Destination": standbyDestinationField.value
  }

Prepare and sign the transaction.

  const check_prepared = await client.autofill(send_check_tx)
  const check_signed = standby_wallet.sign(check_prepared)
  results += 'Sending ' + check_amount + ' ' + standbyCurrencyField + ' to ' +
    standbyDestinationField.value + '...'
  standbyResultField.value = results

Submit the transaction to the XRP Ledger and wait for the response.

  const check_result = await client.submitAndWait(check_signed.tx_blob)

Report the results

  if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
    results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${check_signed.hash}'
    standbyResultField.value = JSON.stringify(check_result.result, null, 2)
  } else {
    results += 'Transaction failed: See JavaScript console for details.'
    standbyResultField.value = results
    throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
  }

Update the XRP balance fields.

  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))

Disconnect from the XRP Ledger.

  client.disconnect()
} // end of sendCheck()

getChecks()

async function getChecks() {

Connect to the XRP Ledger.

  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  standbyResultField.value = results
  await client.connect()
  results += '\nConnected.'
  standbyResultField.value = results
  results= "\nGetting standby account checks...\n"

Define and send the account_objects request, specifying check objects.

  const check_objects = await client.request({
    "id": 5,
    "command": "account_objects",
    "account": standbyAccountField.value,
    "ledger_index": "validated",
    "type": "check"
  })

Report the results.

  standbyResultField.value = JSON.stringify(check_objects.result, null, 2)

Disconnect from the XRP Ledger.

  client.disconnect()
} // End of getChecks()

cashCheck()

Connect to the XRP Ledger and instantiate the account wallets.

async function cashCheck() {
  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  standbyResultField.value = results
  await client.connect()
  results += '\nConnected.'
  standbyResultField.value = results

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)

Set the check_amount variable to the value in the Amount field.

  var check_amount = standbyAmountField.value

If the Currency is anything other than XRP, the check is for an issued currency. Redefine the variable to include the currency and issuer for the token.

  if (standbyCurrencyField.value !=  "XRP") {
  	check_amount = {
      "value": standbyAmountField.value,
      "currency": standbyCurrencyField.value,
      "issuer": standbyIssuerField.value
  	}
  }

Define the CheckCash transaction.

  const cash_check_tx = {
    "TransactionType": "CheckCash",
    "Account": standby_wallet.address,
    "Amount": check_amount,
    "CheckID": standbyCheckID.value
  }

Prepare and sign the transaction.

  const cash_prepared = await client.autofill(cash_check_tx)
  const cash_signed = standby_wallet.sign(cash_prepared)
  results += ' Receiving ' + standbyAmountField.value + ' ' + standbyCurrencyField.value + '.\n'
  standbyResultField.value = results

Submit the transaction and wait for the results.

  const check_result = await client.submitAndWait(cash_signed.tx_blob)

Report the results.

  if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
    results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
    standbyResultField.value = results
  } else {
    results += 'Transaction failed: See JavaScript console for details.'
    standbyResultField.value = results
    throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
  }

Update the XRP balance fields.

  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))

Disconnect from the XRP Ledger.

  client.disconnect()
} // end of cashCheck()

cancelCheck

Connect to the XRP Ledger and instantiate the account wallets.

async function cancelCheck() {
  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  standbyResultField.value = results
  await client.connect()
  results += '\nConnected.'
  standbyResultField.value = results

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)

Define the CheckCancel transaction.

  const cancel_check_tx = {
    "TransactionType": "CheckCancel",
    "Account": standby_wallet.address,
    "CheckID": standbyCheckID.value
  }

Prepare and sign the transaction object.

  const cancel_prepared = await client.autofill(cancel_check_tx)
  const cancel_signed = standby_wallet.sign(cancel_prepared)
  results += ' Cancelling check.\n'
  standbyResultField.value = results

Submit the transaction and wait for the results.

  const check_result = await client.submitAndWait(cancel_signed.tx_blob)

Report the results.

  if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
    results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
    standbyResultField.value = results
  } else {
    results += 'Transaction failed: See JavaScript console for details.'
    standbyResultField.value = results
    throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
  }

Update the XRP balance fields.

  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))

Disconnect from the XRP Ledger.

  client.disconnect()
} // end of cancelCheck()

Reciprocal functions for the Operational account.

// *******************************************************
// ************ Operational Send Check *******************
// *******************************************************
async function opSendCheck() {
  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  operationalResultField.value = results
  await client.connect()
  results += '\nConnected.'
  operationalResultField.value = results

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)

  const issue_quantity = operationalAmountField.value
  var check_amount = operationalAmountField.value

  if (operationalCurrencyField.value !=  "XRP") {
  	check_amount = {
      "currency": operationalCurrencyField.value,
      "value": operationalAmountField.value,
      "issuer": operational_wallet.address
  	}
  }
  const send_check_tx = {
    "TransactionType": "CheckCreate",
    "Account": operational_wallet.address,
    "SendMax": check_amount,
    "Destination": operationalDestinationField.value
  }
  const check_prepared = await client.autofill(send_check_tx)
  const check_signed = operational_wallet.sign(check_prepared)
  results += '\nSending check to ' +
    operationalDestinationField.value + '...'
  operationalResultField.value = results
  const check_result = await client.submitAndWait(check_signed.tx_blob)
  if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
    results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${check_signed.hash}'
    operationalResultField.value = JSON.stringify(check_result.result, null, 2)
  } else {
    results += 'Transaction failed: See JavaScript console for details.'
    operationalResultField.value = results
    throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
  }
  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
  client.disconnect()
} // end of opSendCheck()

// *******************************************************
// ************ Operational Get Checks *******************
// *******************************************************

async function opGetChecks() {
  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  operationalResultField.value = results
  await client.connect()
  results += '\nConnected.'
  operationalResultField.value = results

  results= "\nGetting standby account checks...\n"
  const check_objects = await client.request({
    "id": 5,
    "command": "account_objects",
    "account": operationalAccountField.value,
    "ledger_index": "validated",
    "type": "check"
  })
  operationalResultField.value = JSON.stringify(check_objects.result, null, 2)
  client.disconnect()
} // End of opGetChecks()


// *******************************************************
// ************* Operational Cash Check ******************
// *******************************************************

async function opCashCheck() {
  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  operationalResultField.value = results
  await client.connect()
  results += '\nConnected.'
  operationalResultField.value = results

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)

  var check_amount = operationalAmountField.value

  if (operationalCurrencyField.value !=  "XRP") {
  	check_amount = {
      "value": operationalAmountField.value,
      "currency": operationalCurrencyField.value,
      "issuer": operationalIssuerField.value
  	}
  }
  const cash_check_tx = {
    "TransactionType": "CheckCash",
    "Account": operational_wallet.address,
    "Amount": check_amount,
    "CheckID": operationalCheckIDField.value
  }
  const cash_prepared = await client.autofill(cash_check_tx)
  const cash_signed = operational_wallet.sign(cash_prepared)
  results += ' Receiving ' + operationalAmountField.value + ' ' + operationalCurrencyField.value + '.\n'
  operationalResultField.value = results
  const check_result = await client.submitAndWait(cash_signed.tx_blob)
  if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
    results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
    operationalResultField.value = results
  } else {
    results += 'Transaction failed: See JavaScript console for details.'
    operationalResultField.value = results
    throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
  }
  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
  client.disconnect()
}
// end of opCashCheck()

// *******************************************************
// ************* Operational Cancel Check ****************
// *******************************************************

async function opCancelCheck() {
  let net = getNet()
  const client = new xrpl.Client(net)
  results = 'Connecting to ' + getNet() + '....'
  operationalResultField.value = results
  await client.connect()
  results += '\nConnected.'
  operationalResultField.value = results

  const standby_wallet = xrpl.Wallet.fromSeed(standbySeedField.value)
  const operational_wallet = xrpl.Wallet.fromSeed(operationalSeedField.value)

  const cancel_check_tx = {
    "TransactionType": "CheckCancel",
    "Account": operational_wallet.address,
    "CheckID": operationalCheckIDField.value
  }

  const cancel_prepared = await client.autofill(cancel_check_tx)
  const cancel_signed = operational_wallet.sign(cancel_prepared)
  results += ' Cancelling check.\n'
  operationalResultField.value = results
  const check_result = await client.submitAndWait(cancel_signed.tx_blob)
  if (check_result.result.meta.TransactionResult == "tesSUCCESS") {
    results += 'Transaction succeeded: https://testnet.xrpl.org/transactions/${cash_signed.hash}'
    operationalResultField.value = results
  } else {
    results += 'Transaction failed: See JavaScript console for details.'
    operationalResultField.value = results
    throw 'Error sending transaction: ${check_result.result.meta.TransactionResult}'
  }
  standbyBalanceField.value = (await client.getXrpBalance(standby_wallet.address))
  operationalBalanceField.value = (await client.getXrpBalance(operational_wallet.address))
  client.disconnect()
} // end of cancelCheck()

10.check.html

<html>
  <head>
    <title>Token Test Harness</title>
    <link href='https://fonts.googleapis.com/css?family=Work Sans' rel='stylesheet'>
    <style>
       body{font-family: "Work Sans", sans-serif;padding: 20px;background: #fafafa;}
       h1{font-weight: bold;}
       input, button {padding: 6px;margin-bottom: 8px;}
       button{font-weight: bold;font-family: "Work Sans", sans-serif;}
       td{vertical-align: middle;}
    </style>
    <script src='https://unpkg.com/[email protected]/build/xrpl-latest-min.js'></script>
    <script src='ripplex1-send-xrp.js'></script>
    <script src='ripplex2-send-currency.js'></script>
    <script src='ripplex10-check.js'></script>

  </head>

<!-- ************************************************************** -->
<!-- ********************** The Form ****************************** -->
<!-- ************************************************************** -->

  <body>
    <h1>Token Test Harness</h1>
    <form id="theForm">
      Choose your ledger instance:
      &nbsp;&nbsp;
      <input type="radio" id="tn" name="server"
        value="wss://s.altnet.rippletest.net:51233" checked>
      <label for="testnet">Testnet</label>
      &nbsp;&nbsp;
      <input type="radio" id="dn" name="server"
        value="wss://s.devnet.rippletest.net:51233">
      <label for="devnet">Devnet</label>
      <br/><br/>
      <button type="button" onClick="getAccountsFromSeeds()">Get Accounts From Seeds</button>
      <br/>
      <textarea id="seeds" cols="40" rows= "2"></textarea>
      <br/><br/>
      <table>
        <tr valign="top">
          <td>
            <table>
              <tr valign="top">
                <td>
                <td>
                  <button type="button" onClick="getAccount('standby')">Get New Standby Account</button>
                  <table>
                    <tr valign="top">
                      <td align="right">
                        Standby Account
                      </td>
                      <td>
                        <input type="text" id="standbyAccountField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Public Key
                      </td>
                      <td>
                        <input type="text" id="standbyPubKeyField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Private Key
                      </td>
                      <td>
                        <input type="text" id="standbyPrivKeyField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Seed
                      </td>
                      <td>
                        <input type="text" id="standbySeedField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        XRP Balance
                      </td>
                      <td>
                        <input type="text" id="standbyBalanceField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Amount
                      </td>
                      <td>
                        <input type="text" id="standbyAmountField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Destination
                      </td>
                      <td>
                        <input type="text" id="standbyDestinationField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Issuer
                      </td>
                      <td>
                        <input type="text" id="standbyIssuerField" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Check ID
                      </td>
                      <td>
                        <input type="text" id="standbyCheckID" size="40"></input>
                        <br>
                      </td>
                    </tr>
                    <tr valign="top">
                      <td><button type="button" onClick="configureAccount('standby',document.querySelector('#standbyDefault').checked)">Configure Account</button></td>
                      <td>
                        <input type="checkbox" id="standbyDefault" checked="true"/>
                        <label for="standbyDefault">Allow Rippling</label>
                      </td>
                    </tr>
                    <tr>
                      <td align="right">
                        Currency
                      </td>
                      <td>
                        <input type="text" id="standbyCurrencyField" size="40" value="USD"></input>
                      </td>
                    </tr>
                  </table>
                  <p align="left">
                    <textarea id="standbyResultField" cols="80" rows="20" ></textarea>
                  </p>
                </td>
                </td>
                <td>
                  <table>
                    <tr valign="top">
                      <td align="center" valign="top">
                        <button type="button" onClick="sendXRP()">Send XRP&#62;</button>
                        <br/><br/>
                        <button type="button" onClick="sendCheck()">Send Check</button>
                        <br/>
                        <button type="button" onClick="getChecks()">Get Checks</button>
                        <br/>
                        <button type="button" onClick="cashCheck()">Cash Check</button>
                        <br/>
                        <button type="button" onClick="cancelCheck()">Cancel Check</button>
                        <br/>
                        <button type="button" onClick="getBalances()">Get Balances</button>
                      </td>
                    </tr>
                    </td>
                    </tr>
                  </table>
                </td>
              </tr>
            </table>
          </td>
          <td>
            <table>
              <tr>
                <td>
                <td>
                  <table>
                    <tr>
                      <td align="center" valign="top">
                        <button type="button" onClick="oPsendXRP()">&#60; Send XRP</button>
                        <br/><br/>
                        <button type="button" onClick="opSendCheck()">Send Check</button>
                        <br/>
                        <button type="button" onClick="opGetChecks()">Get Checks</button>
                        <br/>
                        <button type="button" onClick="opCashCheck()">Cash Check</button>
                        <br/>
                        <button type="button" onClick="opCancelCheck()">Cancel Check</button>
                        <br/>
                        <button type="button" onClick="getBalances()">Get Balances</button>
                      </td>
                      <td valign="top" align="right">
                        <button type="button" onClick="getAccount('operational')">Get New Operational Account</button>
                        <table>
                          <tr valign="top">
                            <td align="right">
                              Operational Account
                            </td>
                            <td>
                              <input type="text" id="operationalAccountField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Public Key
                            </td>
                            <td>
                              <input type="text" id="operationalPubKeyField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Private Key
                            </td>
                            <td>
                              <input type="text" id="operationalPrivKeyField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Seed
                            </td>
                            <td>
                              <input type="text" id="operationalSeedField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              XRP Balance
                            </td>
                            <td>
                              <input type="text" id="operationalBalanceField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Amount
                            </td>
                            <td>
                              <input type="text" id="operationalAmountField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Destination
                            </td>
                            <td>
                              <input type="text" id="operationalDestinationField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Issuer
                            </td>
                            <td>
                              <input type="text" id="operationalIssuerField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Check ID
                            </td>
                            <td>
                              <input type="text" id="operationalCheckIDField" size="40"></input>
                              <br>
                            </td>
                          </tr>
                          <tr>
                            <td>
                            </td>
                            <td align="right">
                            <input type="checkbox" id="operationalDefault" checked="true"/>
                              <label for="operationalDefault">Allow Rippling</label>
                              <button type="button" onClick="configureAccount('operational',document.querySelector('#operationalDefault').checked)">Configure Account</button>
                            </td>
                          </tr>
                          <tr>
                            <td align="right">
                              Currency
                            </td>
                            <td>
                              <input type="text" id="operationalCurrencyField" size="40" value="USD"></input>
                            </td>
                          </tr>
                        </table>
                        <p align="right">
                          <textarea id="operationalResultField" cols="80" rows="20" ></textarea>
                        </p>
                      </td>
                      </td>
                    </tr>
                    </td>
                    </tr>
                  </table>
                </td>
              </tr>
            </table>
          </td>
        </tr>
      </table>
    </form>
  </body>
</html>
前のページ
次のページ
